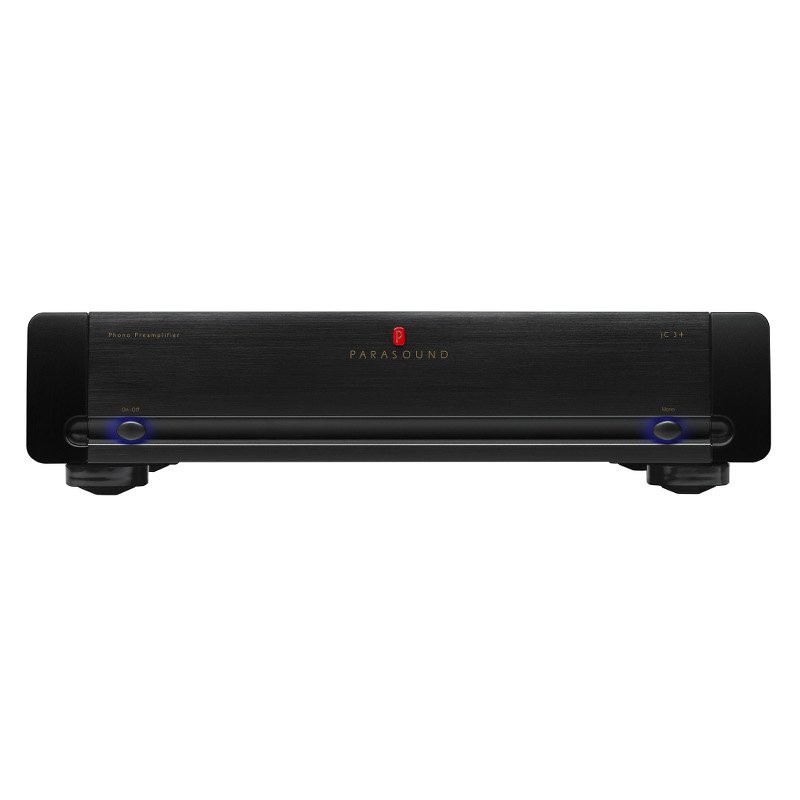

Parasound JC 3+ Phono előerősítő fekete színben

Name: Parasound JC 3+ Phono előerősítő fekete színben
Brand: PARASOUND
SKU: 37248
Price: 1549000 HUF
Availability: InStock

Bővebben

Szín

Gyártó

PARASOUND

Várható szállítási idő

Raktáron lévő termékek esetében 2 - 5 munkanap, rendelhető termékek esetében érdeklődjön. További kedvezmény 5 - 15% !

További adatok

Rendelhető

1 549 000 Ft

Részletek

Specifikáció

Inputs and outputs use Vampire brand 24k gold-plated RCA jacks
Balanced outputs use Neutrik brand premium XLR jacks
MM 47k ohm, MC 47k ohm or MC variable 50-550 Ohms
RIAA accurate within 0.2 dB
Exclusively Vishay-Dale resistors in the audio path
Triple shielding; low-carbon mild steel partitions isolate the power supplies & AC wires
Dual mono design; each audio channel is separately enclosed in its own extruded aluminum enclosure
Separate high speed-soft recovery rectifiers, filter caps and voltage regulators for each channel
Superior R-core type power transformer
Mono switch can improve sound of mono and older LPs
Built-in AC line conditioner to prevent AC noise from polluting the circuits
AC polarity reverse switch can reduce hum in many systems
Non-magnetic aluminum rear panel for purest sound
Turn On Options switch
manual or auto with 12v trigger input
Premium detachable heavy gauge IEC AC cord
2u Chassis, rack mountable with HRA2 (sold separately)
How the JC 3+ improves on the original JC 3
Variable MC load adjust independent for each channel from 50-550 ohms with dual gang potentiometers specially made for Parasound by Vishay.
Curl-Thompson tweaked circuits to further reduce the JC 3 silent background noise.
24k gold plated copper traces on phono module boards for utmost conductivity and most transparency/detail in the music.
47% larger low ESD power supply filter caps greater reserve for head-snapping dynamics.
82% larger R-core power transformer greater reserve for more low end impact.

Ability to turn off illumination of the front panel P logo.
Now Available in Silver or Black. Frequency Response
20 Hz – 20 kHz, +/- 0.2 dB Total Harmonic Distortion
< 0.01% at 1 kHz Signal to Noise Ratio, MM > 87 dB, input shorted, IHF A-weighted
> 78 dB, input shorted, unweighted Signal to Noise Ratio, MC
> 87 dB, input shorted, IHF A-weighted
> 67 dB, input shorted, unweighted Interchannel Crosstalk
72 dB at 1 kHz Input Impedance
MM
47k Ω
MC
50 – 550 Ω variable, 47k Ω fixed Output Impedance
Unbalanced
< 100 Ω
Balanced
< 100 Ω per leg
Input Sensitivity at 1 kHz
MM
4mV for 1 V
Output MC
600µV for 1 V
Output Total Gain
MM
48 dB
MC
64 dB
​XLR Pin Identification 1 = Ground (Shield) 2 = Positive 3 = Negative (Return) AC Power Requirement Standby
